Dong Yang 1926 гидравликий контур (круг)
|

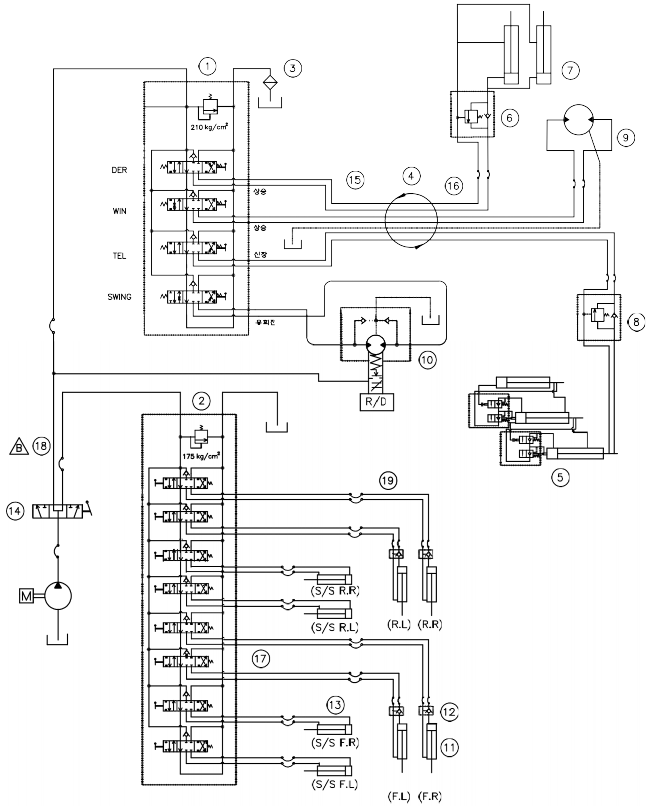

FIG : 10-1 |
유압회로도 CIRCUIT_HYD S201211B |
/ MONTH / YEAR 01 / 2011 |
|||
|
SS1926 |
|||||
|
NO |
PART NO. |
DESCRIPTION |
Q'TY |
SPEC |
REMARKS |
|
1 |
S307656A |
(4 ) VALVE_CONTROL(4S) |
1 |
CHXD4/4S |
|
|
2 |
S305601A |
(8 ) VALVE_CONTROL(8S) |
1 |
MCX3/8S |
|
|
3 |
S302251A |
FILTER_RETURN |
1 |
PT1 1/4" |
|
|
4 |
H20374200 |
JOINT_ROTARY |
1 |
7PORT |
|
|
5 |
H20376600 |
TELESCOPE CYLINDER |
1 |
(SS1927) |
|
|
6 |
S306497A |
VALVE_C/BALANCE |
1 |
2XPF1/2(O) |
|
|
7 |
H20373600 |
CYL' ASS'Y_DERRICK |
2 |
ST700 |
|
|
8 |
S306481A |
COUNTER BALANCE V/V |
1 |
TELE (3:1) |
|
|
9 |
S305602A |
MOTOR_WINCH |
1 |
JMFX36X01 |
|
|
10 |
S306592A |
MOTOR_SWING |
1 |
EPM80C |
|
|
11 |
S305606A |
CYLINDER_FT JACK |
2 |
D80XD60XST490 |
|
|
12 |
S302419A |
VALVE_PILOT CHECK |
2 |
||
|
13 |
S307590A |
CYLINDER_SIDE SHIFT |
2 |
D40XD25XST1740 |
|
|
14 |
S306487A |
3 VALVE_3WAY |
1 |
PT3/4 |
|
|
15 |
S201197A |
HYD' ASS'Y_R/J |
1 |
||
|
16 |
S201187A |
HYD' ASS'Y_R/J(UPPER) |
1 |
||
|
17 |
S201182A |
HYD' ASS'Y_O/R |
1 |
||
|
18 |
S201198B |
3 HYD' ASS'Y_3WAY |
1 |
||
|
19 |
S201183A |
REAR O/R LINE |
1 |
